A concave mirror, also known as a converging mirror, has a reflecting surface that curves inward, away from the incoming light. It focuses parallel rays of light to a single point, making it useful in many daily applications. A mirror is an object with one smooth, shiny surface that reflects light following the laws of reflection the angle of incidence equals the angle of reflection, and both rays lie in the same plane. Mirrors are of two types: plane and spherical mirror (concave and convex mirror). Among them, concave mirrors are used in vehicle headlights, flashlights, shaving mirrors and optical instruments like microscopes. Learning the uses of concave mirrors is also important for students preparing for IIT JEE Main and NEET.
This Story also Contains
- What is a Concave Mirror?
- Uses of Concave Mirror
- Uses Of Concave Mirror In Everyday life
- Image Formation by Concave Mirror
- Properties of a Concave Mirror
- Importance of Concave Mirror in Board Examination
- Uses of Convex Mirror
- Difference Between Concave and Convex Mirrors
- Summary

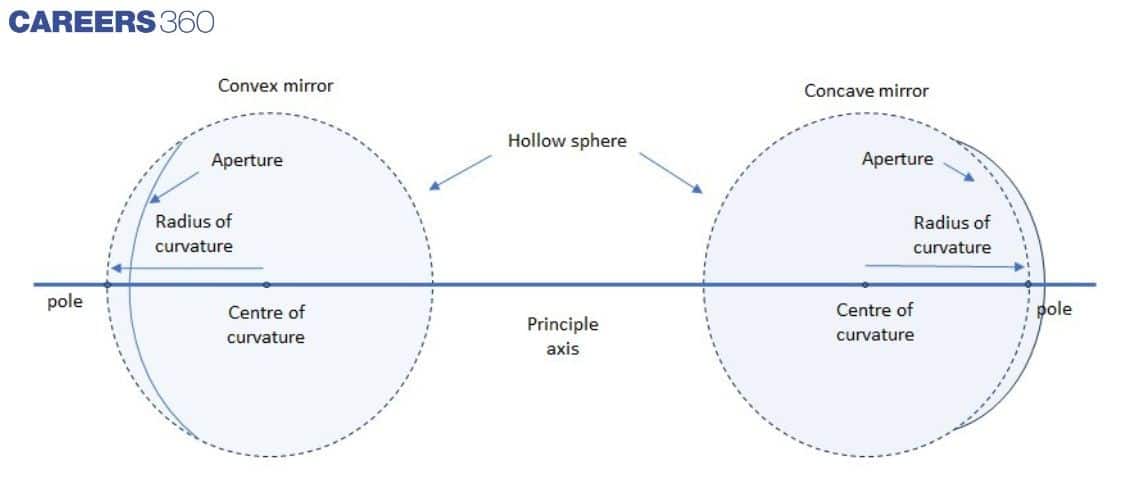

What is a Concave Mirror?
A concave mirror is a curved mirror that is bent inward, like the inside of a bowl or spoon.
Because it curves inward, it converges (focuses) light rays that fall on it.
Related Topics Link,
Uses of Concave Mirror
1. Uses of Concave Mirror in Astronomical Telescopes: In observational astronomy, concave mirrors are used in various reflecting telescopes. The concave mirror collects light from distant celestial objects and focuses on the focal point. The intensity of the light increases because of the convergence of the light beam. The reflection of distant celestial objects is then visible through the eyepiece.

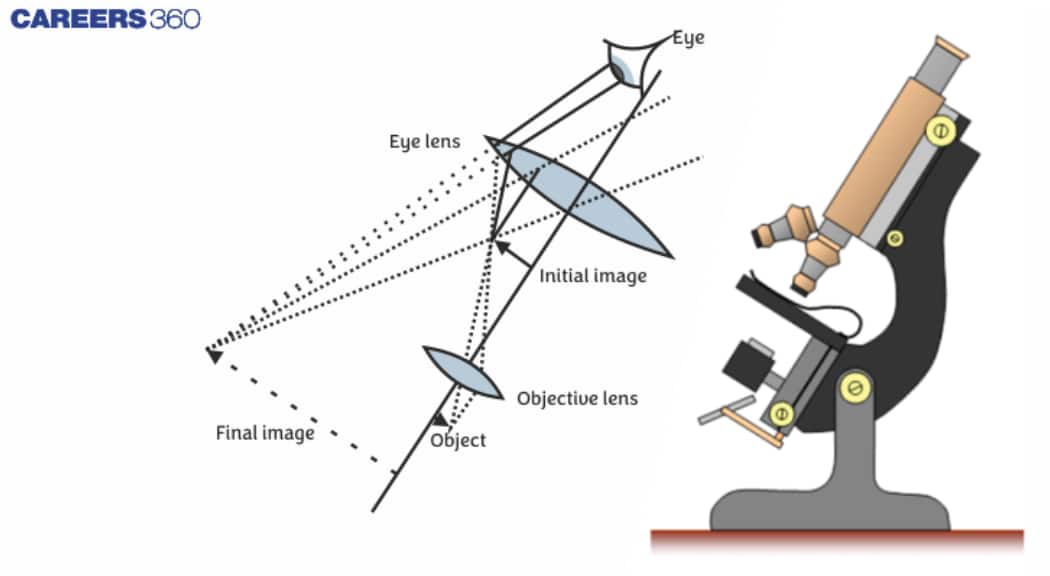

2. Uses of concave mirrors in Microscopes: A concave mirror is used as a condenser at the base of a microscope. Only the specimen is lighted by the concave mirror, thereby ensuring that the surrounding area is dark. The mirror can be rotated to change its orientation. Through an eyepiece, the specimen is visible.
3. Uses of concave mirrors in Headlights and Torches: the bulb of a headlight or a torch is placed at the concave mirror focal point. In the Headlights and Torches, a light beam after being reflected through a concave mirror emerges as parallel light rays. These reflected rays can travel long distances and have a high intensity.
4. Concave mirrors are used in medical tools such as
- The Ophthalmoscope (which is used to check the status of the eyes)
- The Otoscope (which is used to look inside the ears), and many more.
- Concave mirrors are often used by ENT doctors in simple diagnostic equipment such as head mirrors. The setup is used to provide proper illumination in the inspecting areas, thus avoiding shadows.
5. Dental mirrors: Concave mirrors were used by dentists to get a magnified view of the mouth. They help to focus light and give a broader view which helps dentists to examine accurately.
6. Uses of concave mirrors in solar furnaces: Solar furnaces consist of concave mirrors to focus sunlight at a particular point. The concave mirror collects a large amount of light and focuses it on the focal point. This concentration increases the heat or energy produced enhancing the overall efficiency of solar power generation. Heating, cooking, generating electricity, and melting metals all use concentrated energy.
7. Projectors: Specific types of projectors use concave mirrors to focus and direct light from a lamp onto a screen. Thus enhancing the brightness and clarity of the projected image.
8. Lighthouses: In lighthouses, concave mirrors are used to focus light beams, creating a strong visible signal for ships navigating near shorelines. This helps to guide ships to reach the shore safely.
Uses Of Concave Mirror In Everyday life
The uses of concave mirrors are the following:
- Vehicle headlights
- Shaving mirrors
- Solar furnaces
- Searchlights
- Torches
- Flashlights
- Dental Mirrors
- Makeup mirrors
- Cosmetic Devices
- Lamps
- Solar Ovens
- Security Cameras
- Photography
Image Formation by Concave Mirror
| Position of Object | Position of Image | Nature of Image | Size of Image |
| 1. At infinity | At focus F | Real, inverted | Highly diminished |
| 2. Beyond centre of curvature (beyond C) | Between C and F | Real, inverted | Diminished |
| 3. At centre of curvature (at C) | At C | Real, inverted | Same size |
| 4. Between C and F | Beyond C | Real, inverted | Magnified |
| 5. At focus (at F) | At infinity | Real, inverted | Highly magnified |
| 6. Between focus (F) and pole (P) | Behind the mirror | Virtual, erect | Magnified |
Properties of a Concave Mirror
- A concave mirror has its reflecting surface curved inward, like the inside of a bowl.
- It is a converging mirror because it brings parallel rays of light to a focus.
- It has a real focus (F) in front of the mirror where reflected rays actually meet.
- It has a centre of curvature (C) and a principal axis passing through its pole (P).
- It can form real and inverted images when the object is beyond the focus.
- It forms a virtual and erect image when the object is placed between the pole and the focus.
- The image formed may be diminished, same size, or magnified, depending on the object position.
Importance of Concave Mirror in Board Examination
The concave mirror is an important topic in board examinations as it covers both theoretical and numerical aspects of physics. It helps in understanding the formation of images and the behavior of light.
- Questions based on uses and properties of concave mirror are frequently asked in examinations.
- It is important for ray diagram questions, which are essential for scoring good marks.
- Numerical problems based on mirror formula and magnification are commonly included in the exam.
- It is also used in application-based and case study questions, testing practical understanding.
Uses of Convex Mirror
- As rear-view mirrors in vehicles: They provide a wide field of view and form erect, diminished images of traffic behind.
- For security and surveillance: Used in shops, parking areas and corridors to monitor a large area.
- At blind turns and road intersections: Helps drivers see approaching vehicles from different directions.
- In street lighting systems: Used to spread light over a larger area.
Difference Between Concave and Convex Mirrors
| Concave Mirror | Convex Mirror |
| Used in torches and headlights to produce a parallel beam of light |
Used as rear-view mirrors to see a wide area behind |
| Used as a shaving or makeup mirror for magnified image |
Used in shops and parking areas for security and surveillance |
| Used by dentists to see enlarged images of teeth |
Used at blind turns and road intersections for safety |
| Used in solar cookers to concentrate sunlight | Used where a wide field of view is required |
Also Read:
Summary
Concave mirrors are essential optical devices that play an important role in various aspects of our daily lives. Their ability to focus and amplify light enhances the visibility and precision of items such as headlights. They remain vital in technological advancements due to their unique reflective properties. In this article, we discussed the uses of concave mirrors in professional environments and also in everyday life.
Also, check-
Frequently Asked Questions (FAQs)
Two uses of the concave mirror:
concave mirrors are used in the Vehicles headlights
concave mirror is used in the Shaving mirrors
Concave mirrors are used in the Flashlights and torches. The bulb of a headlight or a torch is placed at the concave mirror focal point. In the Headlights and Torches, light beam after being reflected through a concave mirror emerges as parallel light rays. These reflected rays can travel long distances and have a high intensity.
Concave mirrors are used in a variety of applications, including searchlights, shaving mirrors, dental mirrors, satellite dishes, and more. The collimation and concentration of light rays is a property of the concave mirrors. Concave mirrors are used as a light beam Reflector in the torches and headlights. The light source is positioned at the focal point of a concave mirror, causing the light rays to emerge as parallel beams after reflection in the mirror.
Because they spread light across a larger region, convex mirrors are used as streetlight reflectors. Concave mirrors are used for a variety of purposes, including providing a powerful parallel beam of light; a concave mirror is used as a reflector in torches, searchlights, and car headlights, and among other things.
Uses of convex mirrors are following:
1. Convex Mirror is used as a rearview mirror in vehicles to see the traffic at the rear side.
2. Large Convex Mirrors are used as shop security mirrors.
When parallel beams of light fall on the concave mirror it converges the light beam at a point called the focus. That's why a concave mirror is called a converging mirror.
Dentists use concave mirrors because they provide a magnified view of teeth and other areas in the mouth. They help to focus light and give a broader view which helps dentists to examine accurately.
Concave mirrors are used in solar panels.
Dentists use concave mirrors because they provide a magnified view of teeth and other areas in the mouth. They help to focus light and give a broader view which helps dentists to examine accurately.
Concave mirrors are used in solar panels.
