Area of Isosceles Triangle - (Formulas, Derivation and Examples)

What is an Isosceles Triangle?

An isosceles triangle is one of the most important types of triangles in geometry. It is characterized by having two equal sides and two equal angles. Due to its symmetry and unique properties, the isosceles triangle frequently appears in geometry, mensuration, architecture, engineering, and competitive examinations. Understanding its properties and area formulas helps students solve a wide variety of geometric problems efficiently.

Isosceles Triangle Meaning in Simple Words

In simple words, an isosceles triangle is a triangle in which two sides have the same length.

Since two sides are equal, the angles opposite those sides are also equal.

For example, if:

$AB = AC$

then:

$\angle B = \angle C$

This makes the triangle symmetrical about a line passing through its vertex and midpoint of the base.

Definition of an Isosceles Triangle

An isosceles triangle is a triangle that has at least two sides of equal length.

Consider triangle $ABC$.

If:

$AB = AC$

then triangle $ABC$ is an isosceles triangle.

The equal sides are called the legs of the triangle, while the third side is called the base.

Properties of an Isosceles Triangle

An isosceles triangle possesses several important geometric properties.

Key Properties

• Two sides are equal in length.

• Two base angles are equal.

• The altitude from the vertex bisects the base.

• The median drawn to the base is also the altitude.

• The angle bisector from the vertex is also the median.

• The triangle has one line of symmetry.

• The altitude divides the triangle into two congruent right triangles.

Example

In triangle $ABC$:

$AB = AC$

Then:

$\angle B = \angle C$

and the altitude from vertex $A$ divides the base $BC$ into two equal parts.

Why Isosceles Triangles are Important in Geometry

The isosceles triangle plays a significant role in geometry because it combines symmetry with simple geometric relationships.

Importance of Isosceles Triangles

• Used extensively in geometry proofs.

• Helps explain symmetry concepts.

• Forms the basis for many trigonometric derivations.

• Appears frequently in mensuration problems.

• Useful in architecture and structural design.

• Commonly asked in board and competitive examinations.

Area of an Isosceles Triangle

The area of an isosceles triangle measures the region enclosed within its three sides.

Area Meaning in Geometry

In geometry, area refers to the amount of space occupied by a two-dimensional figure.

Area is measured in square units such as:

• $cm^2$

• $m^2$

• $km^2$

The larger the enclosed region, the greater the area.

Definition of Area of an Isosceles Triangle

The area of an isosceles triangle is the total region enclosed by its three sides.

Like all triangles, the area depends on the base and the perpendicular height.

The standard area formula is:

$A=\frac{1}{2}bh$

where:

• $b$ = base

• $h$ = height

Real-Life Examples of Isosceles Triangles

Isosceles triangles appear frequently in everyday life.

Examples

• Roof structures of houses.

• Road warning signs.

• Decorative wall designs.

• Bridge supports.

• Architectural frameworks.

• Triangular flags and banners.

Many of these structures use isosceles triangles because their symmetry provides both strength and visual balance.

Applications of Area Calculations

Area calculations for isosceles triangles are useful in many practical situations.

Area of Isosceles Triangle Formula

Several formulas can be used to find the area of an isosceles triangle depending on the information available.

Standard Area Formula

Like any triangle, the area of an isosceles triangle is:

$A=\frac{1}{2}bh$

where:

• $b$ = base

• $h$ = perpendicular height

Formula Using Base and Height

If the base and height are known directly, use:

$A=\frac{1}{2}bh$

Example

If:

$b=10\ cm$

$h=8\ cm$

then:

$A=\frac{1}{2}\times10\times8$

$A=40\ cm^2$

Formula Using Equal Sides and Base

Sometimes the height is not given.

If:

• Equal side = $a$

• Base = $b$

then:

$A=\frac{b}{4}\sqrt{4a^2-b^2}$

This formula allows us to calculate the area directly using only the side lengths.

Example

If:

$a=13\ cm$

$b=10\ cm$

then:

$A=\frac{10}{4}\sqrt{4(13)^2-(10)^2}$

$A=\frac{10}{4}\sqrt{676-100}$

$A=\frac{10}{4}\sqrt{576}$

$A=\frac{10}{4}\times24$

$A=60\ cm^2$

Understanding the Variables in the Formula

Understanding these variables makes it easier to apply the correct formula in different situations.

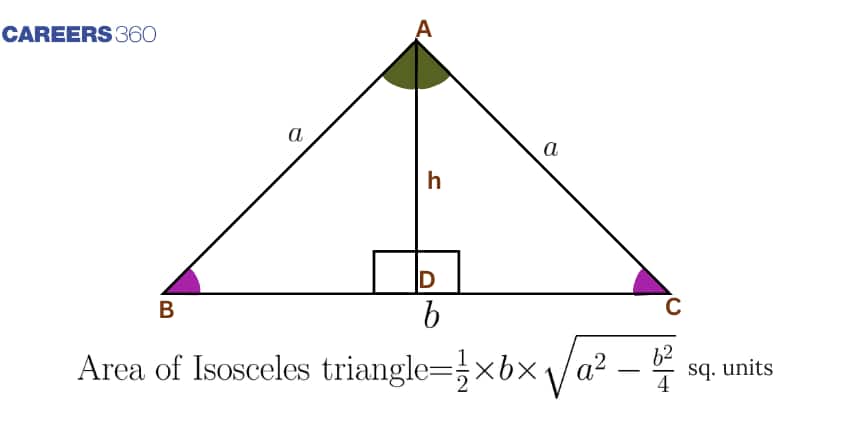

Derivation of Area of Isosceles Triangle

The area formula can be derived using basic geometry and the Pythagorean Theorem.

Derivation Using Height and Base

Consider an isosceles triangle with:

• Equal sides = $a$

• Base = $b$

Draw a perpendicular from the vertex to the base.

This altitude:

• Bisects the base.

• Creates two congruent right triangles.

Therefore:

Half base $=\frac{b}{2}$

Using Pythagoras Theorem in Derivation

In one of the right triangles:

Hypotenuse $=a$

Base $=\frac{b}{2}$

Height $=h$

Applying Pythagoras Theorem:

$\displaystyle a^2=h^2+\left(\frac{b}{2}\right)^2$

Therefore:

$\displaystyle h=\sqrt{a^2-\frac{b^2}{4}}$

Step-by-Step Mathematical Proof

Substitute the height into the area formula:

$A=\frac{1}{2}bh$

$A=\frac{1}{2}b\sqrt{a^2-\frac{b^2}{4}}$

Simplifying further:

$A=\frac{b}{4}\sqrt{4a^2-b^2}$

Thus, the area formula using equal sides and base is obtained.

Geometric Interpretation of the Formula

The formula shows that:

• The area depends on both the base and equal sides.

• Increasing the height increases the area.

• Increasing the base while keeping side lengths fixed changes the height and area simultaneously.

The formula captures the relationship between all dimensions of an isosceles triangle.

How to Find the Area of an Isosceles Triangle?

There are multiple methods depending on the information available.

Method Using Base and Height

If base and height are known:

$A=\frac{1}{2}bh$

Example

Base $=12\ cm$

Height $=7\ cm$

Area:

$A=\frac{1}{2}\times12\times7$

$A=42\ cm^2$

Method Using Equal Sides

If only the equal sides and base are known:

$A=\frac{b}{4}\sqrt{4a^2-b^2}$

Example

$a=10\ cm$

$b=12\ cm$

Area:

$A=\frac{12}{4}\sqrt{4(10)^2-(12)^2}$

$A=48\ cm^2$

Step-by-Step Procedure

Step 1

Identify the known measurements.

Step 2

Choose the appropriate formula.

Step 3

Substitute the values.

Step 4

Perform the calculations.

Step 5

Write the answer in square units.

Common Mistakes to Avoid

Students often make these mistakes:

• Using side length instead of height.

• Forgetting to divide by 2.

• Using incorrect units.

• Confusing equal sides with the base.

• Applying the wrong formula.

Always verify whether the height is given directly or must be calculated first.

Properties of an Isosceles Triangle

The unique symmetry of an isosceles triangle leads to several important properties.

Equal Sides Property

An isosceles triangle has two equal sides.

If: $AB=AC$

then triangle $ABC$ is isosceles.

Equal Angles Property

The angles opposite the equal sides are equal.

If: $AB=AC$ then: $\angle B=\angle C$

This property is known as the Isosceles Triangle Theorem.

Median, Altitude, and Angle Bisector Relationship

In an isosceles triangle, the line drawn from the vertex to the midpoint of the base acts simultaneously as:

• Median

• Altitude

• Angle bisector

• Perpendicular bisector

This unique property greatly simplifies geometric calculations.

Symmetry of an Isosceles Triangle

An isosceles triangle has exactly one line of symmetry.

The line passes through:

• The vertex angle.

• The midpoint of the base.

This symmetry divides the triangle into two congruent right triangles, making it easier to analyze and solve geometric problems.

Area of Isosceles Triangle in Different Conditions

Area of isosceles triangle in different conditions include the area of isosceles triangle if only sides are known, area of isosceles triangle without height and area of isoceles triangle using trigonometry.

How to find the Area of Isosceles triangle if Only Sides are Known?

If we know all the sides of triangle, then the height or altitude can be calculated using the following formula:

Altitude of Isosceles Triangle $=\sqrt{\frac{a^2-b^2}{4}}$

Area of Isosceles Triangle Formula Using Only Sides $\frac{1}{2} \times \sqrt{ \left(\frac{a^2-b^2}{4} \right)} \times b$

Where,
- $\mathrm{b}=$ base of isosceles triangle
- $\mathrm{h}=$ height of isosceles triangle
- $\mathrm{a}=$ length of two equal sides

From the diagram above,
$(A, B, C D$ are $E, F, G, H)$

$
\begin{aligned}
& \mathrm{FH}=\mathrm{HG}=\frac{1}{2} \mathrm{FG}=\frac{1}{2} \mathrm{~b} \\
& \mathrm{EF}=\mathrm{EG}=\mathrm{a}
\end{aligned}
$

Now we make the use of Pythagoras theorem for $\triangle \mathrm{EFG}$,

$
\begin{aligned}
& a^2=(\frac{b}{2})^2+(E H)^2 \\
& E H=\sqrt{ \left(\frac{a^2-b^2}{4}\right)}
\end{aligned}
$

The altitude of isosceles triangle $=\sqrt{ \left(\frac{a^2-b^2}{4}\right)}$

Formula to find area of isosceles triangle $=\frac{1}{2} \times b \times h$
Substituting the value for height:
Formula to find area of isosceles triangle using only sides $=\frac{1}{2} \left[\sqrt{ \left(\frac{a^2-b^2}{4}\right)} \times b\right]$

Area of Isosceles Triangle without height

The area of isosceles triangle can be found out using heron's formula when we do not know the height.

Area of isosceles triangle by heron's formula:

Area $=\sqrt{ [s(s-a)(s-b)(s-c)]}$
Where, $s= \frac{1}{2} (a+b+c)$
Now, we know that for an isosceles triangle,
$s= \frac{1}{2} (a+a+b)$ (since the two sides are equal)

$
\Rightarrow \mathrm{s}= \frac{1}{2} (2 \mathrm{a}+\mathrm{b})
$

Or, $\mathrm{s}=\mathrm{a}+(\frac{\mathrm{b}}{ 2})$
Area $=\sqrt{ [s(s-a)(s-b)(s-c)]}$

Or, Area $=\sqrt{s(s-a)^2(s-b)}$
$\Rightarrow$ Area $=(\mathrm{s}-\mathrm{a}) \times \sqrt{s(\mathrm{s}-\mathrm{b})}$

Substituting the value of " s "

Area $=\left(\frac{a+b}{2}-a\right) \times \sqrt{\left[\left(\frac{a+b}{2}\right)\left(\frac{a+b}{2}-b\right)\right]}$.

Area $=\frac{b}{2} \times \sqrt{\left(\frac{a^2-b^2}{4}\right)}$

Area of Isosceles Triangle Using Trigonometry

Here we use the 2 equal sides of triangle and the angle between them,
Formula of area of isosceles triangle $=\frac{1}{2} \times b \times c \times \sin (\alpha)$
Else, when we use 2 angles and length between them,
Area of isosceles triangle $=\frac{[c^2 \times \sin (\beta) \times \sin (\alpha)}{2} \times \sin (2 \pi-\alpha-\beta)]$

The following table summarises the formula to find area of isosceles triangle.

Area of Isosceles Right Triangle

An isosceles right triangle is a triangle with two equal sides and a $90^\circ$ angle where the equal angles measure $45^\circ$ each. The area of isosceles right triangle is the area covered within the isosceles right trianlge in a two dimensional plane.

Area of Isosceles Right Triangle Formula

The formula for Isosceles Right Triangle Area $=\frac{1}{2} \times a^2$
(C,A,B replaced as $P, Q, R)$
We calculate the length of the hypotenuse as:

$
\begin{aligned}
& P R^2=a^2+a^2 \\
& P R=\sqrt{2}a
\end{aligned}
$

Area of isosceles triangle is $=\frac{1}{2} \times$ base $\times$ height
Area $=\frac{1}{2} \times a \times a=\frac{a^2}{2}$ square units
Area $=\frac{1}{2} \times$ base $\times$ height
Hence area of isosceles triangle is $=\frac{1}{2} \times a \times a=\frac{a^2}{2}$

Perimeter of Isosceles Right Triangle

Perimeter can be defined as sum of all sides of a triangle.

We take the 2 equal sides to be $r$. Using Pythagoras theorem, we find the unequal side to be $\mathrm{r} \sqrt{2}$

Therefore, perimeter of isosceles right triangle $=r+r+r \sqrt{ 2}$

$
\begin{aligned}
& =2 r+r \sqrt{2 } \\
& =r(2+\sqrt{ 2}) \\
& =r(2+\sqrt{2 })
\end{aligned}
$

Best Books for the Area of an Isosceles Triangle

Understanding triangle geometry and mensuration formulas is essential for solving area-based questions involving isosceles triangles.

Shortcut Tips and Tricks for Area of Isosceles Triangle

Knowing the symmetry properties of an isosceles triangle can make area calculations much easier.

Important Formula Table

This formula sheet contains the most important formulas related to the area of an isosceles triangle.

Solved Examples based on Area of Isosceles Triangle formula

Example 1: Find the area of an isosceles triangle given $b = 10\ \mathrm{cm}$ and $h = 12\ \mathrm{cm}$.

Solution:

Base of the triangle $(b) = 10\ \mathrm{cm}$

Height of the triangle $(h) = 12\ \mathrm{cm}$

Area of an isosceles triangle $= \frac{1}{2}bh$

Substituting the values:

Area $= \frac{1}{2} \times 10 \times 12$

Area $= 60\ \mathrm{cm}^2$

Hence, the area of the isosceles triangle is $60\ \mathrm{cm}^2$.

Example 2: Find the length of the base of an isosceles triangle whose area is $240\ \mathrm{cm}^2$ and height is $20\ \mathrm{cm}$.

Solution:

Given,

Area $(A) = 240\ \mathrm{cm}^2$

Height $(h) = 20\ \mathrm{cm}$

Base $(b) = ?$

Using the formula:

$A = \frac{1}{2}bh$

$240 = \frac{1}{2} \times b \times 20$

$240 = 10b$

$b = \frac{240}{10}$

$b = 24\ \mathrm{cm}$

Hence, the base of the isosceles triangle is $24\ \mathrm{cm}$.

Example 3: Find the area of an isosceles triangle given $b = 10\ \mathrm{cm}$ and $h = 30\ \mathrm{cm}$.

Solution:

Given,

Base $(b) = 10\ \mathrm{cm}$

Height $(h) = 30\ \mathrm{cm}$

Area of an isosceles triangle $= \frac{1}{2}bh$

Area $= \frac{1}{2} \times 10 \times 30$

Area $= 150\ \mathrm{cm}^2$

Hence, the area of the isosceles triangle is $150\ \mathrm{cm}^2$.

Example 4: Find the length of the base of an isosceles triangle whose area is $200\ \mathrm{cm}^2$ and height is $3\ \mathrm{cm}$.

Solution:

Given,

Area $(A) = 200\ \mathrm{cm}^2$

Height $(h) = 3\ \mathrm{cm}$

Base $(b) = ?$

Using the formula:

$A = \frac{1}{2}bh$

$200 = \frac{1}{2} \times b \times 3$

$200 = \frac{3b}{2}$

$400 = 3b$

$b = \frac{400}{3}$

$b = 133.33\ \mathrm{cm}$

Hence, the base of the isosceles triangle is $133.33\ \mathrm{cm}$.

Example 5: Find the area of an isosceles triangle whose base is $10\ \mathrm{cm}$ and height is $7\ \mathrm{cm}$.

Solution:

Given,

Base $(b) = 10\ \mathrm{cm}$

Height $(h) = 7\ \mathrm{cm}$

Area of an isosceles triangle $= \frac{1}{2}bh$

Area $= \frac{1}{2} \times 10 \times 7$

Area $= 35\ \mathrm{cm}^2$

Hence, the area of the isosceles triangle is $35\ \mathrm{cm}^2$.

Example 6: Find the area of an isosceles triangle whose base is $16\ \mathrm{cm}$ and height is $9\ \mathrm{cm}$.

Solution:

Given,

Base $(b) = 16\ \mathrm{cm}$

Height $(h) = 9\ \mathrm{cm}$

Area $= \frac{1}{2}bh$

Area $= \frac{1}{2} \times 16 \times 9$

Area $= 72\ \mathrm{cm}^2$

Hence, the area of the isosceles triangle is $72\ \mathrm{cm}^2$.

Example 7: Find the height of an isosceles triangle whose area is $96\ \mathrm{cm}^2$ and base is $12\ \mathrm{cm}$.

Solution:

Given,

Area $(A) = 96\ \mathrm{cm}^2$

Base $(b) = 12\ \mathrm{cm}$

Height $(h) = ?$

Using the formula:

$A = \frac{1}{2}bh$

$96 = \frac{1}{2} \times 12 \times h$

$96 = 6h$

$h = \frac{96}{6}$

$h = 16\ \mathrm{cm}$

Hence, the height of the isosceles triangle is $16\ \mathrm{cm}$.

Example 8: Find the area of an isosceles triangle whose equal sides are $13\ \mathrm{cm}$ each and base is $10\ \mathrm{cm}$.

Solution:

Given,

Equal side $(a) = 13\ \mathrm{cm}$

Base $(b) = 10\ \mathrm{cm}$

First find the height using Pythagoras theorem:

$h = \sqrt{a^2-\left(\frac{b}{2}\right)^2}$

$h = \sqrt{13^2-5^2}$

$h = \sqrt{169-25}$

$h = \sqrt{144}$

$h = 12\ \mathrm{cm}$

Now,

Area $= \frac{1}{2}bh$

Area $= \frac{1}{2} \times 10 \times 12$

Area $= 60\ \mathrm{cm}^2$

Hence, the area of the isosceles triangle is $60\ \mathrm{cm}^2$.

Example 9: Find the area of an isosceles triangle whose equal sides are $25\ \mathrm{cm}$ each and base is $14\ \mathrm{cm}$.

Solution:

Given,

Equal side $(a) = 25\ \mathrm{cm}$

Base $(b) = 14\ \mathrm{cm}$

Height:

$h = \sqrt{25^2-7^2}$

$h = \sqrt{625-49}$

$h = \sqrt{576}$

$h = 24\ \mathrm{cm}$

Area $= \frac{1}{2}bh$

Area $= \frac{1}{2} \times 14 \times 24$

Area $= 168\ \mathrm{cm}^2$

Hence, the area of the isosceles triangle is $168\ \mathrm{cm}^2$.

Example 10: Find the area of an isosceles triangle whose equal sides are $17\ \mathrm{cm}$ each and base is $16\ \mathrm{cm}$.

Solution:

Given,

Equal side $(a) = 17\ \mathrm{cm}$

Base $(b) = 16\ \mathrm{cm}$

Height:

$h = \sqrt{17^2-8^2}$

$h = \sqrt{289-64}$

$h = \sqrt{225}$

$h = 15\ \mathrm{cm}$

Area $= \frac{1}{2}bh$

Area $= \frac{1}{2} \times 16 \times 15$

Area $= 120\ \mathrm{cm}^2$

Hence, the area of the isosceles triangle is $120\ \mathrm{cm}^2$.

List of Topics Related to Area of Isosceles Triangle

Given below are the topics which are related to the area of isosceles triangle and it will help you strenghten your understanding and concepts:
